1989 to 1997 | PROJECT EXPERIENCE

Apprentice | Intermediate | Senior Architectural Technician | Project Technologist at:

Graham E Tranter RIBA | Chartered Architects (Retired) | Walsall:

Images shown with kind consent from former Employer.

Below: Walsall Lithographic Holdings Company Ltd (Walsall Security Printers) | 27,000 sq ft Secure Finishing & Warehouse Extension | Walsall:

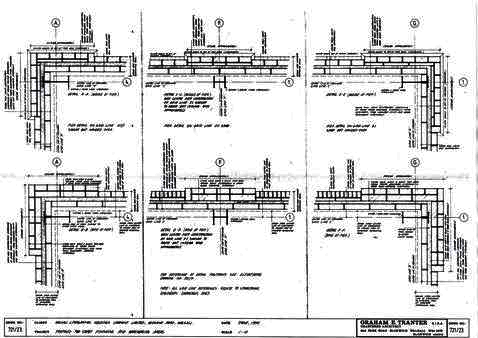

Above: Construction Drawing (Steelwork/Brickwork Arrangements) in Rotring Pen | June 1995

Below: On behalf of Robert Turner & Partners Consulting Structural & Civil Engineers (Chartered Engineers) | 21,500 sq ft Conversion & Extension of Existing Industrial Unit into Galvanizing Plant & Offices | Walsall:

Above: Planning/Working Drawing (Ground Floor Layout & Elevations) in Rotring Pen | November 1996

Above: Planning/Working Drawing (First Floor Layout) in Rotring Pen | February 1997

Above: Planning/Working Drawing (Upper Gantry Layout) in Rotring Pen | February 1997

Above: Working Drawing (Section) in Rotring Pen | November 1996

BT Felton & Sons Ltd | New-Build Residential Development of 25No. Dwellings | Burntwood

PW Enterprises Ltd GT Leisure Bowl) | 43,000 sq ft 5No. Bowling Lane Extension Works | Bloxwich

Below: B Tyler & Sons Ltd (William Tyler Developments Ltd) | New-Build Residential Development of 7 No. Detached Dwellings | Norton Canes:

Above; Typical House Type Planning Drawing in Rotring Pen | April 1996

Beeches Nursing Home (Mr B Sooklall) | 14,500 sq ft Extension Works to Existing Nursing Home | West Bromwich

Below: R Bonser & R Stringer | New Build Residential Development of 10 No. Detached Dwellings | Walsall Wood:

Above: Typical House Type Working Drawing in Rotring Pen | October 1994

Above: Adopted Road, Sewer & Drainage Layout in Rotring Pen | March 1996

Cassidy Group Holdings PLC | 75,000 sq ft Conversion of Retail Furniture Store to Licenced Nightclub, Pool Hall, Laser Quest & Restaurant | Cannock

Below: Nova Haven Ltd | New Build Residential Development of 24 No. Detached Dwellings | Yew Tree Farm, Austry, in Warwickshire:

Above: Planning Drawing in Rotring Pen | September 1990

Below: Mr & Mrs Bennett | Two-Storey Extension to Existing Farmhouse, Ashmore Cottage, together with Detached Agricultural Building | Muckley Corner, in Lichfield:

Above: Planning Drawing in Rotring Pen & freehand Pencil | August 1991
