CONSERVATION | HISTORIC | LISTED BUILDINGS

Below: Award Winning Restoration & Extension of the Grade II Listed Building, Grand Lodge & it's Grounds (Stables/Coach House/Gated Entrance/Gardens) of Beaudesert Hall Estate, within the Area of Outstanding Natural Beauty of Cannock Chase (AONB), Longdon for Mr & Mrs K & J Phillips:

The Grand Lodge was designated a Grade II Listed Building on the 28th January 1988.

It was built in 1813-1815 by Joseph Potter for Henry William Paget, the Second Earl of Uxbridge and First Marquis of Anglesey.

The list description for the Grand Lodge is as follows: "Lodge. 1814. By John Shaw (now thought to be by Joseph Potter) for the Second Earl of Uxbridge..."



https://www.johngerman.co.uk/property/grand-lodge-horsey-lane-longdon-staffordshire/



Above: Original Concept Design, supported by Lichfield District Council Conservation & Planning Officers | AutoCAD Drawing

Above: Photograph of CIAT The Alan King Award Plaque | Fixed in place to the Grand Lodge

Above: Site & Landscaping Layout for a refined scheme, showing Lodge, Stables, Coach House & Replacement Gated Entrance, supported by the Conservation & Planning Officers | Pencil Drawing

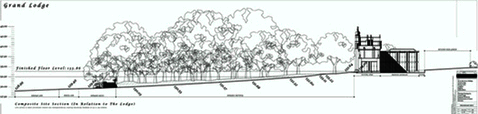

Above: Composite Site Section, showing relationship of Replacement Gated Entrance to the Lodge | AutoCAD Drawing

Above: Design Drawing, showing comparison of concept & refined Gated Entrance proposals | AutoCAD Drawing

Above: Large Scale Fabrication Details of Bespoke Bronzed Entrance Gates & Railings | AutoCAD Drawing

Above: Large Scale Construction Details of Gated Entrance Walling for Construction | AutoCAD Drawing

Above: External Material Finishes Options | AutoCAD Drawing

Above: Architectural Illustration Artwork for the Approved Scheme

Above: Working Drawing showing Longitudinal & Cross Sections of the Approved Works | AutoCAD Drawing

Above: Large Scale Construction Details of the Extension Works for Construction |  AutoCAD Drawing

Before:

After:

Before:

Above: Photograph of the original dilapidated Grade II Listed Building Grand Lodge (Before)





After:

Above: Almost Completed Photograph of the Multi Award Winning Extended & Restored Grade II Listed Building Grand Lodge | Beaudesert Hall Park (After)





Below: Oakenway | New Build Contemporary Style Detached Dwelling within the Heart of the former Royal Forest & Area of Outstanding Natural Beauty, Site of Special Scientific Interest & Green Belt of Cannock Chase, Kingsley Wood Road, for Mr Malcolm Hill.

Above: Concept Scheme A | 3-Storey (Partial Basement) Timber/Metal Clad Round House Dwelling | Pencil Drawing

Above: Concept Scheme C | Contemporary Style | Pencil Drawing

Above: Planning Approved Scheme | Contemporary Style | AutoCAD Drawing

Above: Working Drawing showing Foundation Layout & Schedules | AutoCAD Drawing

Above: Working Drawing showing Ground Floor Plan & Section | AutoCAD Drawing

Above: Working Drawing showing First Floor Plan & Section | AutoCAD Drawing

Above: Working Drawing showing Sections | AutoCAD Drawing

Above: Working Drawing showing Elevations | AutoCAD Drawing

Above: Working Drawing showing Elevations | AutoCAD Drawing

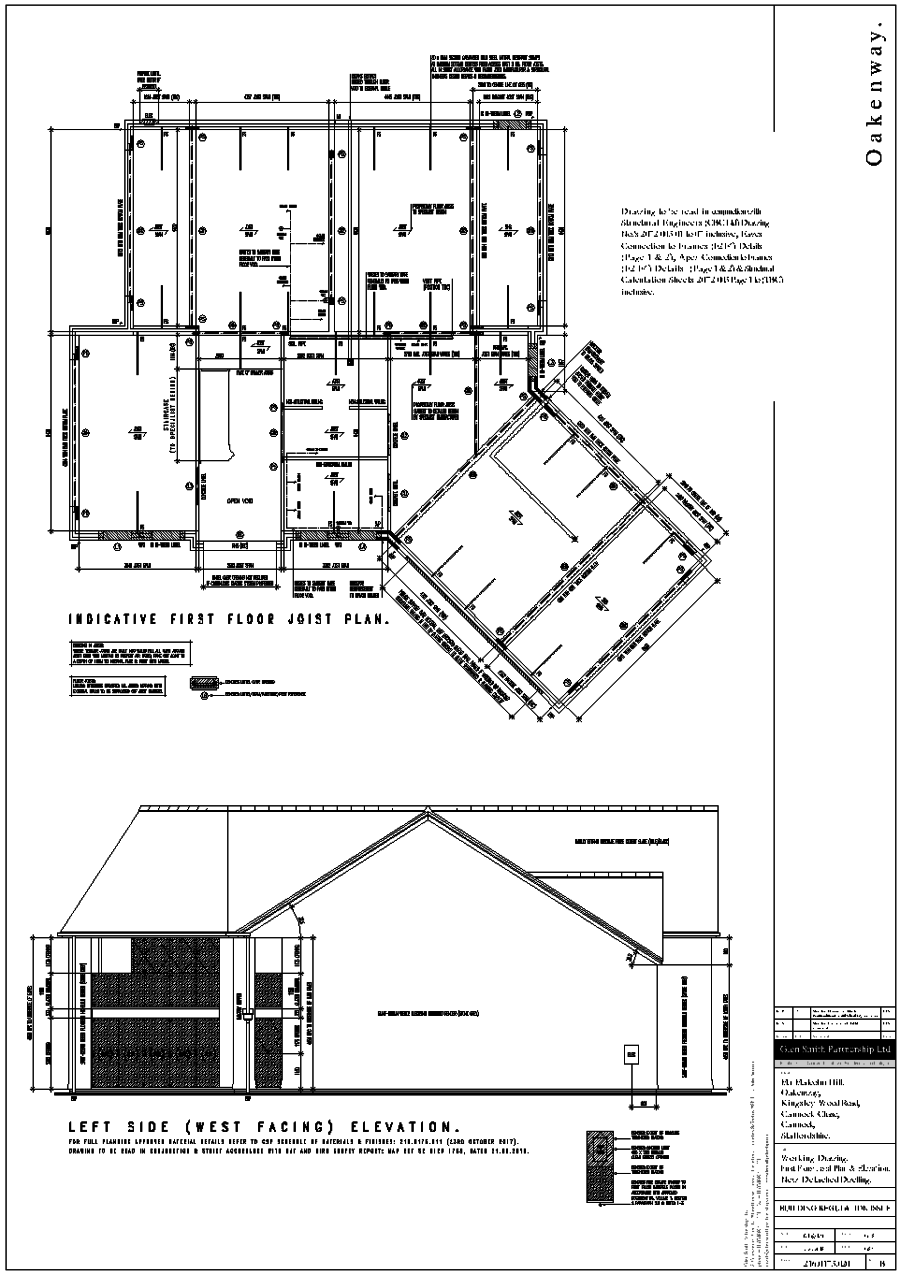

Above: Working Drawing showing First Floor Joist Plan & Elevation | AutoCAD Drawing

Above: Working Drawing showing Loft Floor Joist Plan & Section | AutoCAD Drawing

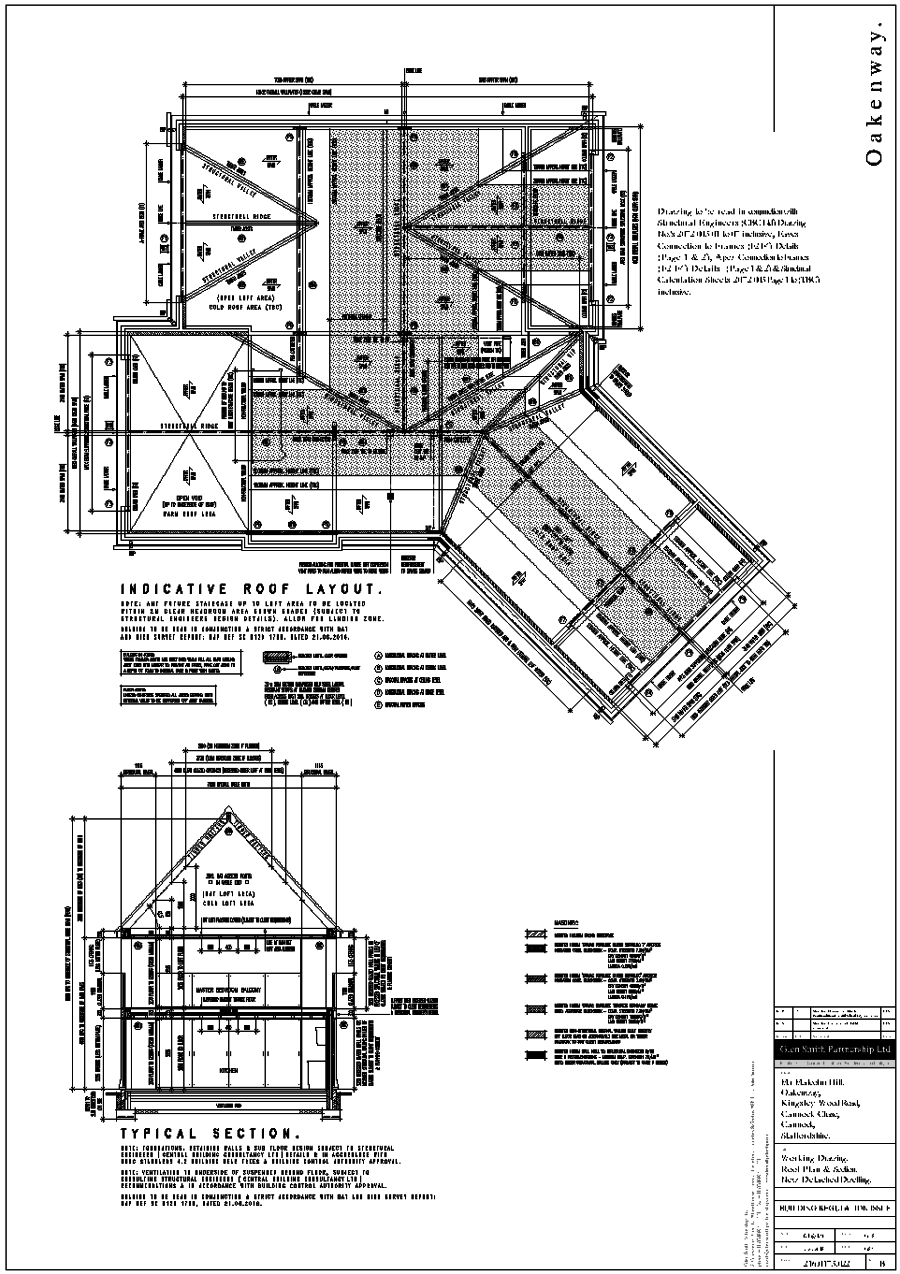

Above: Working Drawing showing Roof Joist Plan & Section | AutoCAD Drawing

Above: Approved Landscaping Layout & Tree Protection measures | Pencil Drawing

Extension & Alteration of the mid 16th Century 3-Storey Grade II Listed Timber Framed Building, Fulfen Farm, in Lichfield for Mr & Mrs W & H Tolmie.

Below: Gablewood | Detached 3-Storey Detached Dwelling within the Conservation Area of Squirrel Walk, off Roman Road, Little Aston Park for Mr & Mrs H & L Freeman:

Above: Concept Design, in the Arts & Crafts Style, for Initial Client Consideration | AutoCAD Drawing

Above: Digital Architectural Illustration Artwork, showing typical Frontage

Above: Digital Architectural Illustration Artwork, showing typical Rear Facade

Above: Alternative Concept Design, in the Prairie School Style (Frank Lloyd Wright), for Initial Client Consideration | AutoCAD Drawing

The Firs | New Build Detached Dwelling (1 of 3), within the Conservation Area of Penkridge for Mr Andrew J Jennings.

Below: The OaklandsNew Build Contemporary Style 3-Storey Cliff Side Detached Dwelling within the Conservation Area of Market Drayton, Newtown, for Mr M Hawkins.

Above: Working Drawing showing Front Elevation | AutoCAD Drawing

Above: Working Drawing showing Right Cliff Side Elevation | AutoCAD Drawing

Above: Working Drawing showing Cliff Side Section | AutoCAD Drawing

Replacement of Rose Cottage at Pipehill, within the Conservation Area of Lichfield for Mr & Mrs H & L Freeman:

Before:

Above: Photograph of the original dilapidated Cottage (Before)

After:

Above: Photograph of Completed Works (After) | Pretty Chocolate Box Cottage

Above: Amended Planning Approved Scheme for Rose Cottage | AutoCAD Drawing

Below: Extension & Alteration Works at Gaiafields Road within the Conservation Area of Lichfield for Mr & Mrs A & H Macdonald:

Before:

Above: Survey Photograph (Before)

After:

Above: Photograph of Completed Works (After) | A complete transformation!

Above: Building Survey Drawing (Before) | AutoCAD Drawing

Above: Initial Planning Approved Scheme for Extension Works to Front | AutoCAD Drawing

Above: Initial Planning Approved Scheme for Extension Works to Frontage | AutoCAD Drawing

Above: Amended Planning Approved Scheme for Extension Works to Frontage | AutoCAD Drawing

Below: Longacre Farm | Barn Conversion Works & Discharge of Planning Approval & Conservation Area Consent Conditions for 1No. Detached Dwelling & 1No. Annexe within the Conservation Area of Blithbury, for Mr & Mrs D & S Froggatt:

Above: Planning Approved Landscaping Scheme for Conversion of Existing Agricultural Out Buildings | Pencil Drawing

Above: Large Scale Planning Approved Joinery Elevations for Conversion of Existing Agricultural Out Buildings (Dwelling) | AutoCAD Drawing

Above: Large Scale Planning Approved Joinery Elevations for Conversion of Existing Agricultural Out Buildings (Annexe) | AutoCAD Drawing

Below: Extension & Alteration Works & Discharge of Planning Approval & Conservation Area Consent Conditions for 2No. Detached Dwellings within the Conservation Area of Pelsall Common, for Mr T Cox:

Above: Digital Architectural Illustration Artwork, showing typical Frontage

Above: Planning Approved Landscaping & Tree Protection Scheme | Pencil Drawing
