ECCLESIASTICAL

Below: Church reordering with 1575sq.ft. Extension Works, 675sq.ft. Loft Conversion & Internal & External Alterations at Temple Baptist Church, in Wolverhampton, West Midlands, for The Reverend T Gritts, to form New Ground Floor Vestry, Baptistry, Alter, Sunday School, Day Nursery, Kitchen, Changing Rooms, Toilets, Stores & enlarged Nave with 4 No. First Floor Sunday School Classrooms, Stores & Toilet Facilities:

Above: Measured Building Survey (Tender) Drawing showing the Existing Ground Floor & Elevations | AutoCAD Drawing

Above: Measured Building Survey (Tender) Drawing showing the Existing Loft Space, Section & Site Layout | AutoCAD Drawing

Above: Working (Tender) Drawing showing the Proposed Ground Floor Layout | AutoCAD Drawing

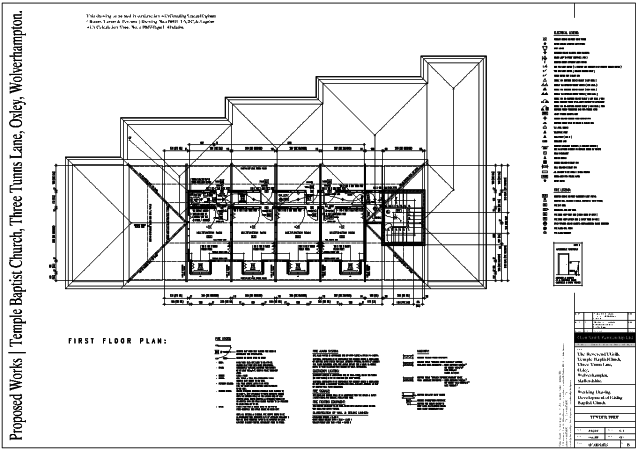

Above: Working (Tender) Drawing showing the Proposed First Floor (Loft Conversion) Layout | AutoCAD Drawing

Above: Working (Tender) Drawing showing the Proposed Front & Side Elevations | AutoCAD Drawing

Above: Working (Tender) Drawing showing the Proposed Rear & Side Elevations | AutoCAD Drawing

Above: Working (Tender) Drawing showing the Proposed Longitudinal & Cross Sections of the Approved Works | AutoCAD Drawing
